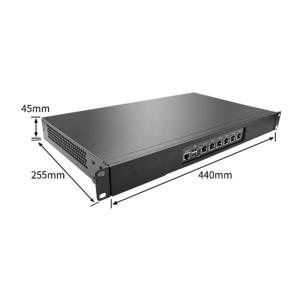

1U rackmount quad cores N150 6 I226V 2500M NIC firewall PC soft router support pFsense
Key Features
Specifications
| Model No. | VGS-BF10206001-N150 | |
| Chassis | Color | Black |
| Dimension | 440mm*255mm*45mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor |
Integrated Intel® N-series Twin Lake N150 Quad core 4 threads processor Max Turbo Frequency 3.6 GHz 6 MB Intel® Smart Cache Processor Base Power 6W |
| Chipset | Twin Lake N150 | |
| Graphics |
Integrated Intel® Graphics support 1*VGA display output |
|
| RAM | DDR5 | Support 1*SO-DIMM DDR5 4800MHz Max16GB |
| Storage | HDD | 1*SATA3.0 interface |
| SSD | 1*MSATA SSD | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 6* Intel® I226V 2.5G LAN |
| Expansion | M.2 | 1*M.2 B Key support 4G module, 1*M.2 E Key, support WIFI/bluetooth |
| Front I/O | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.2 | |
| LAN | 6* RJ45 Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Back I / O | Display | 1* VGA display output |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply | |
| Reliability | Operating Temp. | 0℃~50℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10/11, Linux, Ubuntu Pfsense etc. | |
